BPMN with Robot Framework#

After learning the basics of BPMN modeling and how to model for execution with Operaton, it should be clear that external Service Task is the most flexible way to orchestrate Robot Framework test or task suites with BPMN, using the Operaton BPM engine.

Tip

The playground ships with a dedicated plugin for rendering external Service Task elements with a word robot in their ID with robot icon.

Introducing `pur`(jo)#

pur(jo) is an experimental command line tool for orchestrating Robot Framework test or task suites with the Operaton BPM engine. It long-polls external service tasks from the Operaton engine, executes mapped Robot Framework test and task suites with the uv Python environment manager, and finally reports the results or errors back to the engine.

$ pur
Usage: pur [OPTIONS] COMMAND [ARGS]...

pur(jo) is a tool for managing and serving robot packages.

╭─ Commands ────────────────────────────────────────────────────────────────╮
│ serve    Serve robot.zip packages (or directories) as BPMN service tasks. │
│ init     Initialize a new robot package into the current directory.       │
│ wrap     Wrap the current directory into a robot.zip package.             │
│ run      Deploy process resources to BPM engine and start a new instance. │
│ operaton BPM engine operations as distinct sub commands.                  │
╰───────────────────────────────────────────────────────────────────────────╯

Note

The operaton subcommand is also available as bpm for backwards compatibility.

Tip

Before trying out pur(jo) in the playground, first start the Operaton BPM engine with the make start command in the terminal.

“Hello World” for `pur`(jo)#

To get started, create a new directory for your bot:

$ mkdir hello-world
$ cd hello-world

Then initialize the directory with pur(jo):

$ pur init

This would create a new hello-world directory with the following files:

.python-version - Python version
pyproject.toml - Python dependencies and topic mapping
uv.lock - uv dependency lock file
hello.bpmn - example BPMN model for trying out the package
Hello.py - example Robot Framework keyword library
hello.robot - example Robot Framework test suite
README.md - Empty README for your use.
.wrapignore - Specifies files to exclude when packaging with pur wrap.

Tip

Use pur init --python to create a pure Python template instead of a Robot Framework template.

Next, start a new process instance with the example BPMN model:

$ pur run hello.bpmn

Then, start the pur(jo) worker to execute the Robot Framework test suite:

$ pur serve .

Now you should be able to see pur(jo) executing the Robot Framework test suite from the current project directory and reporting the results back to Operaton.

Mapping test and tasks#

Every pur(jo) project includes pyproject.toml, which is a Python project configuration file. For pur(jo) projects, it also contains a mapping from BPMN topics to Robot Framework tests or tasks:

[tool.purjo.topics."My Topic in BPMN"]
name = "My Test in Robot"
on-fail = "ERROR"
process-variables = true

In the mapped value, name is passed as the argument -t to robot when executing the Robot Framework. For example, name = "*" would run all tests or tasks in the package.

The other two options, on-fail and process-variables are optional. Option on-fail controls the behavior of purjo when the executed robot test or task fails:

on-fail = "FAIL" is the default, which raises on incident at the Operaton engine.
on-fail = "COMPLETE" completes the task at Operatin with success, but sets local task variables errorCode and errorMessage from the last Robot Framework test or task failure.
on-fail = "ERROR" completes the task at Operatin with a BPMN error, which allows catching the error in BPMN with a BPMN error boundary event.

Finally, option process-variables = true makes purjo to pass all process variables to the Robot Framework test or task as global variables using --variablefile command line argument. The default behavior is false, which passes only the variables defined in the BPMN task inputs.

Dependency management#

Test and task package dependencies are managed with the uv Python environment manager. For example:

$ uv add request

would add the request Python package to the pyproject.toml and update the uv.lock files.

Project packaging#

To package the current directory into a deployable robot.zip file, use:

$ pur wrap

To package an offline-capable robot.zip, wrap the package with:

$ pur wrap --offline

This will include uv’s project-specific .cache directory in the package. Packages with .cache can be executed with uv’s --offline flag, utilizing the packaged cache.

Development helpers#

pur(jo) is designed to support fast iterations while developing Robot Framework test and task packages to be orchestrated with BPM. The following commands should be helpful:

pur init initializes a new project in the current directory.
pur operaton deploy <RESOURCES...> deploys given resources as a single multi-file deployment to the Operaton BPM engine.
pur operaton start <KEY> starts a new process instance from the deployed process definition with the given key (ID in the modeler, but Key in the engine).
pur operaton create <FILENAME> creates a new BPMN, DMN, or Form file with unique IDs.
pur run <RESOURCES...> is a shortcut for both deploying resources to the BPM engine and starting a new process instance defined in them.
pur serve . serves the project from the current directory as an external BPMN service task worker, following the topic mapping defined in its pyproject.toml.

Tip

Both pur operaton start and pur run accept option --variables, which accepts a JSON string, a JSON filename or - to read JSON from stdin. JSON object would then be parse as key-value-pairs into initial process variables for the started process.

Note

Both pur operaton deploy and pur run try to migrate previous process versions to the latest version deployed with the command, unless called with the --no-migrate flag.

Executing test and task packages#

pur serve <PACKAGES...> serves the given robot.zip packages or directories with developed packages as external BPMN service task workers by following their topic mapping in pyproject.toml:

$ pur serve --help

 Usage: pur serve [OPTIONS] ROBOTS...

 Serve robot.zip packages (or directories) as BPMN service tasks.

╭─ Arguments ─────────────────────────────────────────────────────────────────────────────────╮
│ *    robots      ROBOTS...  [default: None] [required]                                      │
╰─────────────────────────────────────────────────────────────────────────────────────────────╯
╭─ Options ───────────────────────────────────────────────────────────────────────────────────╮
│ --base-url             TEXT                   [env var: ENGINE_REST_BASE_URL]               │
│                                               [default: http://localhost:8080/engine-rest]  │
│ --authorization        TEXT                   [env var: ENGINE_REST_AUTHORIZATION]          │
│ --secrets              TEXT                   [env var: TASKS_SECRETS_PROFILE]              │
│ --timeout              INTEGER                [env var: ENGINE_REST_TIMEOUT_SECONDS]        │
│                                               [default: 20]                                 │
│ --poll-ttl             INTEGER                [env var: ENGINE_REST_POLL_TTL_SECONDS]       │
│                                               [default: 10]                                 │
│ --lock-ttl             INTEGER                [env var: ENGINE_REST_LOCK_TTL_SECONDS]       │
│                                               [default: 30]                                 │
│ --max-jobs             INTEGER                [default: 1]                                  │
│ --worker-id            TEXT                   [env var: TASKS_WORKER_ID]                    │
│                                               [default: operaton-robot-runner]              │
│ --log-level            TEXT                   [env var: LOG_LEVEL]                          │
│                                               [default: DEBUG]                              │
│ --on-fail              [FAIL|COMPLETE|ERROR]  [default: FAIL]                               │
│ --help                                        Show this message and exit.                   │
╰─────────────────────────────────────────────────────────────────────────────────────────────╯

Tip

pur serve --on-fail=ERROR would report failed robot executions as BPMN errors, which allows easy routing of execution in BPMN using Error Boundary Events.

BPMN variables in robot#

pur(jo) passes BPMN variables defined in external Service Task inputs to Robot Framework execution as global variables using --variablefile command line argument.

Therefore, robot variable ${message} in the following robot suite

*** Variables ***

${message}    Hello World

*** Test Cases ***

Log message
    Log    ${message}

would be replaced with the value of local variable message defined in the Service Task inputs.

Robot variables to BPMN#

Robot Framework as such does not have a concept of output or result variables. In other words, there is no single right way of defining, what should e returned back to BPM engine.

At first, pur(jo) always returns log.html and output.xml files are local task variables into engine. On error, pur(jo) returns also the last Robot Framework test or task failure as local errorCode and errorMessage variables or Operaton incident or BPMN error arguments.

For custom variables, pur(jo) extends Robot Framework variable scope with two new scopes: BPMN:TASK and BPMN:PROCESS. These scopes are used in robot test or task suites to define variables, which should be returned back to BPMN engine. For example:

*** Test Cases ***

Set BPMN variable
    VAR    ${message}    Hello World!    scope=BPMN:TASK

would set a BPMN variable message with value Hello World! for the current task scope in Operaton. This variable could then be exported from task to process scope with task outputs.

Unfortunately, scope=BPMN:TASK is not valid robot syntax, because of undefined scope. Therefore, pur(jo) supports the following pattern, where ${BPMN:TASK} variable with valid default value is used instead. pur(jo) would then replace the default value with its custom scope when executing robot.

This would be valid robot syntax, that would also return a BPMN variable when executed with pur(jo):

*** Variables ***

${BPMN:TASK}    local

*** Test Cases ***

Set BPMN variable
    VAR    ${message}    Hello World!    scope=${BPMN:TASK}

Simlarly, the following example would set the variables direcly onto process scope, not requiring definition of task outputs in the BPMN task:

*** Variables ***

${BPMN:PROCESS}    local

*** Test Cases ***

Set BPMN variable
    VAR    ${message}    Hello World!    scope=${BPMN:PROCESS}

Warning

If a variable is defined in input mapping, scope=${BPMN:PROCESS} cannot pass the variable back to the process scope, but only updates the variable in the task scope instead. Therefore output mapping is still required for passing variables back to the process scope.

Handling failures#

Handling orchestrated Robot Framework test or task failures in BPMN may have different requirements in different processes. In task automation, for example, unexpected failure should usually halt the process for manual investigation (by rising a new incident at Operaton engine). In test automation, such failures are usually expected and it is enough to tear down the test environment and report the failure.

In Operaton engine an external Service Task can fail in three main ways:

Task worker reports the task as failed without retry instructions, which creates manually managed incident at the engine.
Task worker reports the task as completed with BPMN error, which allows catching the error redirecting the process automatically in the process flow with BPMN error boundary event.
Task worker reports the task as successfully completed, but with BPMN error throw expression, which could then be caught and redirected in the process flow using BPMN error boundary event.

For handling these different failure types, pur serve has option --on-fail=FAIL|COMPLETE|ERROR to configure how failed robot executions are reported back to the engine, unless task have topic specific configuration in pyproject.toml.

By the default value, FAIL, pur serve reports failed robot executions as failed tasks without automated instructions, creating incidents to be manually hangled at the engine. (Note: pur(jo) should eventually support configuration settings allowed per listened topic.)

With COMPLETE, failed robot executions are reported as successfully completed tasks, but two local task variables errorCode and errorMessage. These variables are null on Robot Framework PASS. On Robot Framework FAIL, errorCode contains the first line of the last Robot Framework test or task failure, and errorMessage contains the rest. This allows configuring an throw expression BPMN when errorCode has a value.

With ERROR, failed robot executions are reported as completed tasks with a BPMN error, which allows redirecting the process with a BPMN error boundary event or capturing all errors with an event-based subprocess with an error start event.

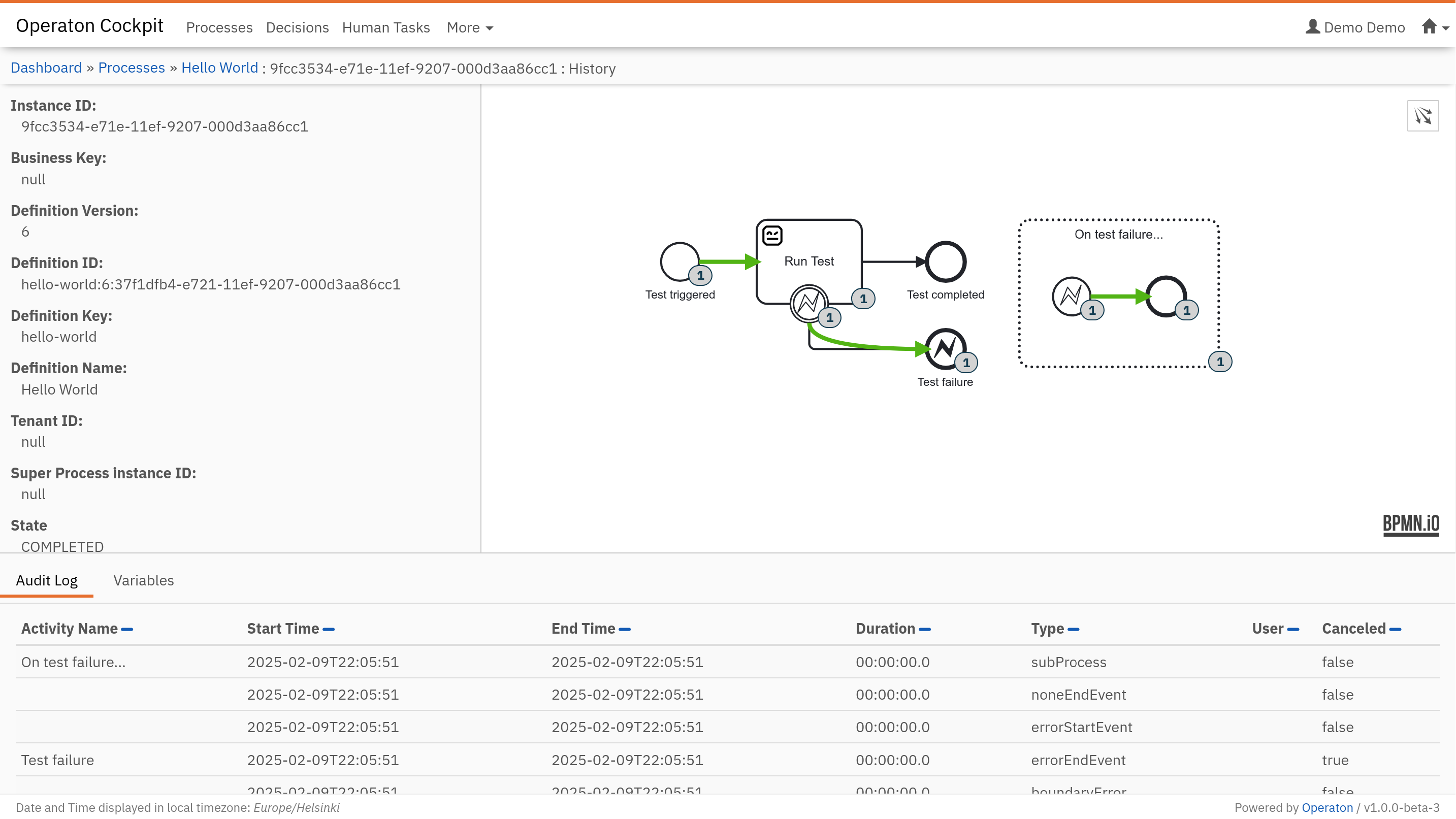

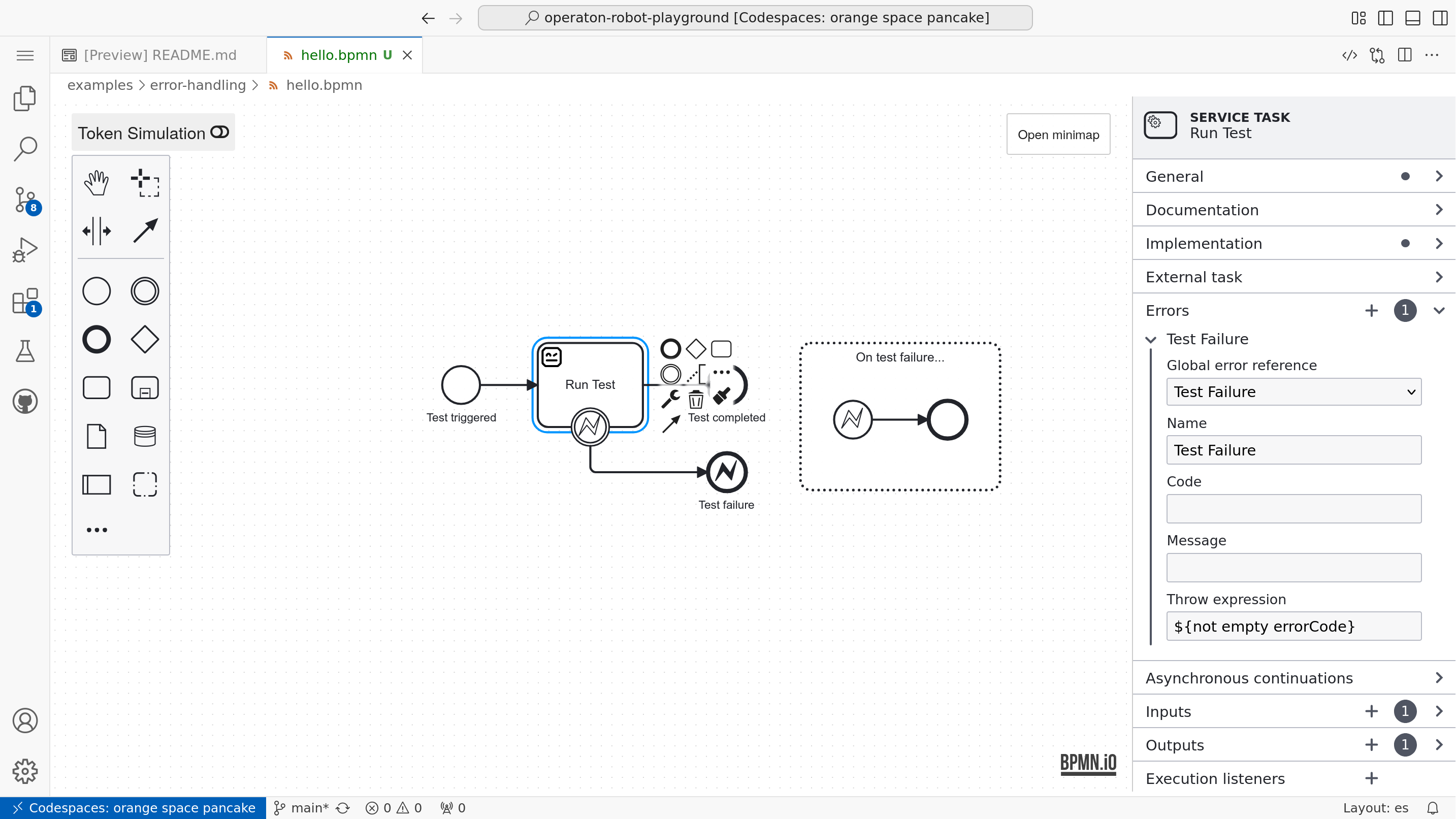

BPMN error on Robot Framework failure

Note

To be more complete, external Service Task can also fail in two other ways:

Task worker reports the task as failed, but with retry timeout as automated retry instrutions, and the task will be automatically and silently retried by the engine later.
Task worker disappears after locking the task and before completing it, and the task will be automatically released for a retry by another worker later.

Managing secrets#

pur(jo) provides a flexible system for managing sensitive information (secrets) using different providers (e.g., local files, HashiCorp Vault). Secrets are injected into your tasks as variables, but handled securely to prevent accidental exposure.

Configuration#

Secrets are configured in pyproject.toml under [tool.purjo.secrets]. You can define multiple profiles.

File provider#

The file provider loads secrets from a JSON file:

[tool.purjo.secrets.default]
provider = "file"
path = "secrets.json"

The corresponding secrets.json file:

{
  "api_key": "my-secret-key"
}

Vault provider#

The vault provider loads secrets from HashiCorp Vault:

[tool.purjo.secrets.prod]
provider = "vault"
path = "secret/my-app"
mount-point = "secret"

This requires VAULT_ADDR and VAULT_TOKEN environment variables to be set.

Using secrets#

When running pur serve, purjo uses the default profile if one exists. You can specify a different profile or a direct file path using the --secrets option:

# Use the 'prod' profile from pyproject.toml
$ pur serve --secrets prod .

# Use a specific secrets file directly (bypassing pyproject.toml)
$ pur serve --secrets ./my-secrets.json .

Secrets are injected as variables into your Robot Framework or Python tasks:

*** Tasks ***
Use API Key
    Log To Console    The API Key is: ${api_key}

Tip

If robotframework >= 7.4b2 is used, secrets are automatically converted to Secret objects, which mask their values in logs.

Warning

Never commit secrets files to version control. Add secrets.json (and any other secret files) to your .gitignore. Use the vault provider for production environments to avoid storing secrets on disk.

Testing tasks#

pur(jo) includes a Robot Framework library, also named purjo, which facilitates testing your tasks in isolation without needing a running BPM engine.

The `purjo` library#

The purjo library allows you to execute tasks defined in your project as if they were being called by the BPM engine, but locally within a Robot Framework test suite. This is crucial for verifying task logic, variable mapping, and error handling before deployment.

The core keyword provided by the library is Get Output Variables. It executes a specific task (identified by its topic) from a robot package using a set of input variables and returns the resulting output variables:

*** Settings ***
Library    purjo
Library    Collections

*** Tasks ***
Test My Task
    # Define input variables
    &{inputs}=    Create Dictionary    name=Alice

    # Execute the task locally
    &{outputs}=   Get Output Variables    path=.    topic=My Topic in BPMN    variables=${inputs}

    # Verify the output
    Should Be Equal    ${outputs}[message]    Hello, Alice!

The Get Output Variables keyword accepts the following arguments:

path: Path to the robot package. This can be the current directory (.) during development or a path to a packaged robot.zip file.
topic: The BPMN topic name as configured in your pyproject.toml file.
variables: A dictionary containing the input variables that the task expects.
secrets: (Optional) A dictionary containing the secrets that the task expects.

Testing with secrets#

If your task requires secrets, you can pass them as a dictionary using the secrets argument:

*** Settings ***
Library     purjo
Library     Collections

*** Variables ***
&{Input Variables}              name=John
&{Expected Output Variables}    message=John's birthday is tomorrow
&{Secret Variables}             birthday=tomorrow

*** Test Cases ***
Test Hello World
    ${Output Variables}=    Get Output Variables    ${CURDIR}${/}hello    My Topic in BPMN    ${Input Variables}   ${Secret Variables}
    Dictionaries Should Be Equal    ${Output Variables}    ${Expected Output Variables}

This approach allows you to build a comprehensive regression test suite for your BPMN tasks, ensuring they behave correctly with various inputs and edge cases.
