Operaton Robot Playground

Operaton Robot Playground is a VSCode Dev Container based development environment that supports GitHub Codespaces. It can also be run locally with the VSCode extension. For adventurers, the README also mentions more manual setups.

Technically, the playground is just a git repository containing both this documentation and the development environment configuration. There are a lot of files, but don’t be afraid of them.

Terminal

Using the playground requires substantial use of the terminal because the main tools used, uv, pur(jo), and robot, are all command line tools.

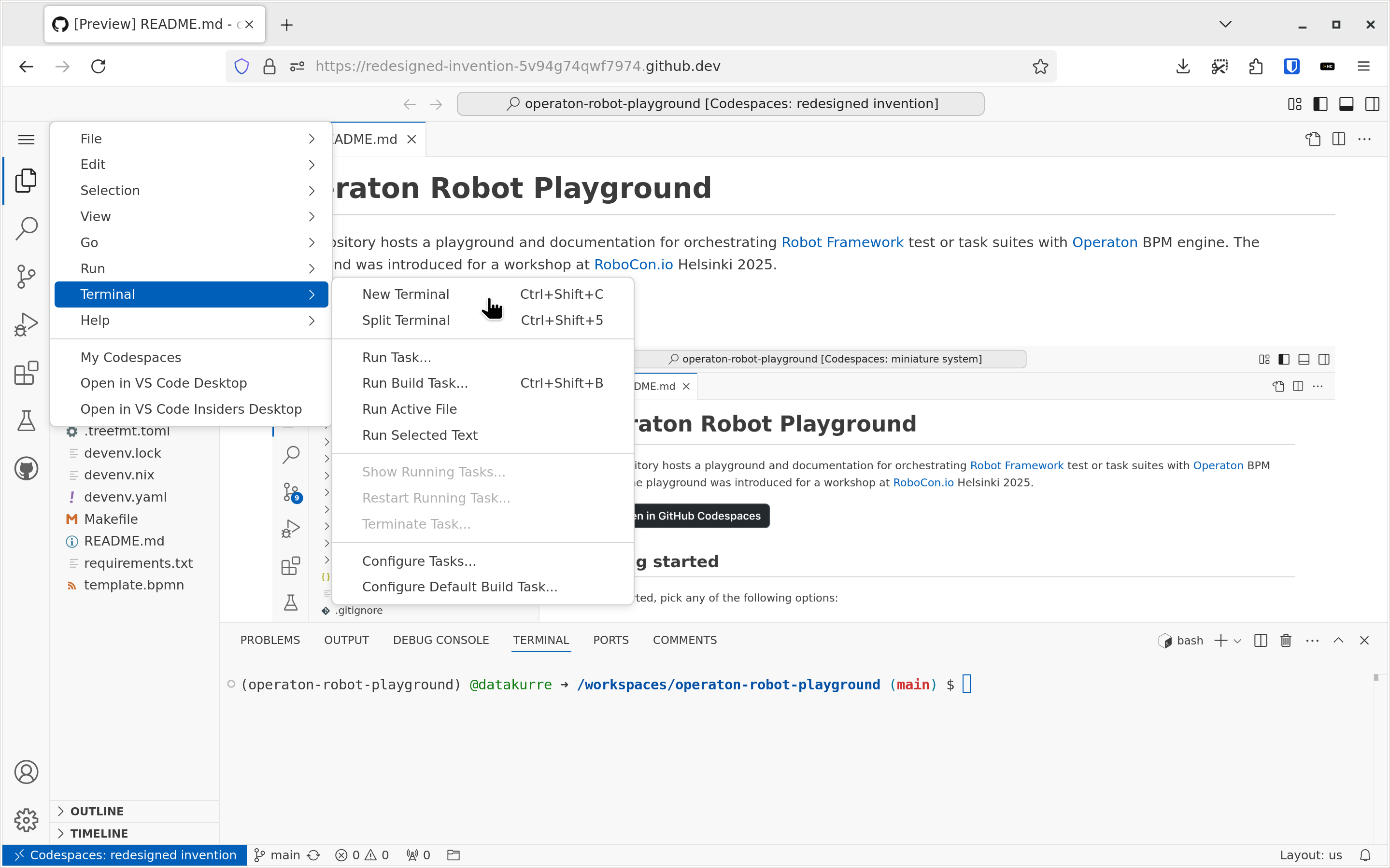

A new terminal can be launched using the shortcut Ctrl+Shift+S or Cmd+Shift+S. Alternatively, it can be found from the menu Terminal > New Terminal. Or with editor command > Terminal: Create New Terminal.

If the terminal does not start with the default Python virtual environment (operaton-robot-playground) activated, it should be activated by typing the command make shell into each new terminal.

Operaton

BPMN-driven orchestration requires a BPM engine capable of executing BPMN models. The playground provides a preconfigured Operaton BPM engine, which is a Java-based open-source BPM engine, forked from the popular Camunda 7 CE.

The current version is 1.0.0b3 with JSON support (“SPIN”) and the currently required UI plugin for displaying process instance histories.

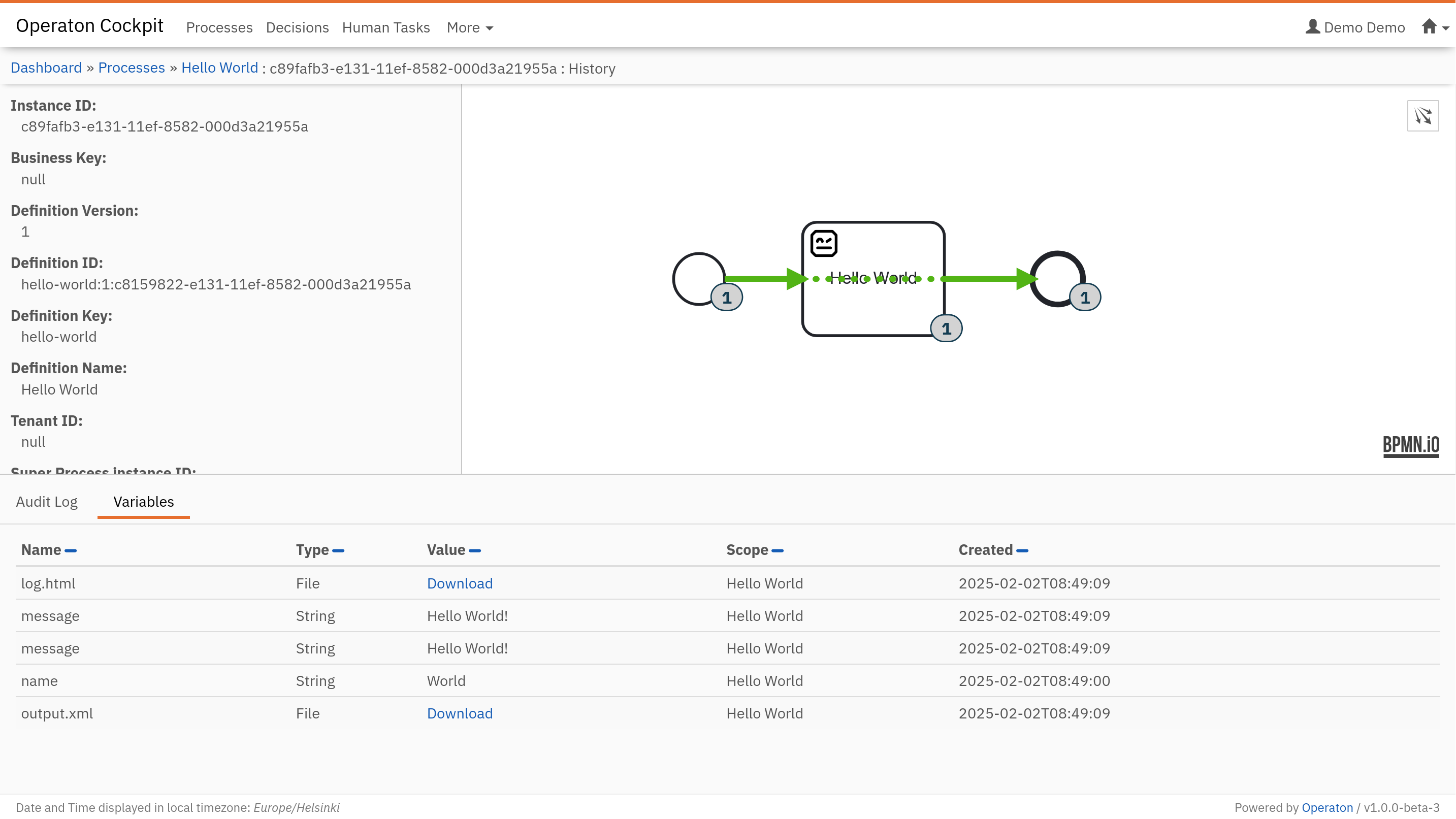

Operaton is started from the terminal in the background with the command make start. Once started, the editor will prompt you to open the Operaton UI in a new browser tab. The playground username is demo and the password is demo.

If you need to see the console output of Operaton, you can attach to its monitor with make start-monitor.

The raw devenv command to start Operaton and attach the monitor all at once in the same terminal is devenv up.

Operaton BPMN, DMN & Form Modelers

For creating and editing BPMN 2.0, DMN, and form diagrams for Operaton, the playground uses opinionated extensions published by datakurre directly on the Visual Studio Marketplace:

• Opinionated BPMN 2.0 Modeler (datakurre.vscode-operaton-bpmn-js-modeler)

• Opinionated DMN 1.3 Modeler (datakurre.vscode-operaton-dmn-js-modeler)

• Opinionated Form Modeler (datakurre.vscode-operaton-form-js-modeler)

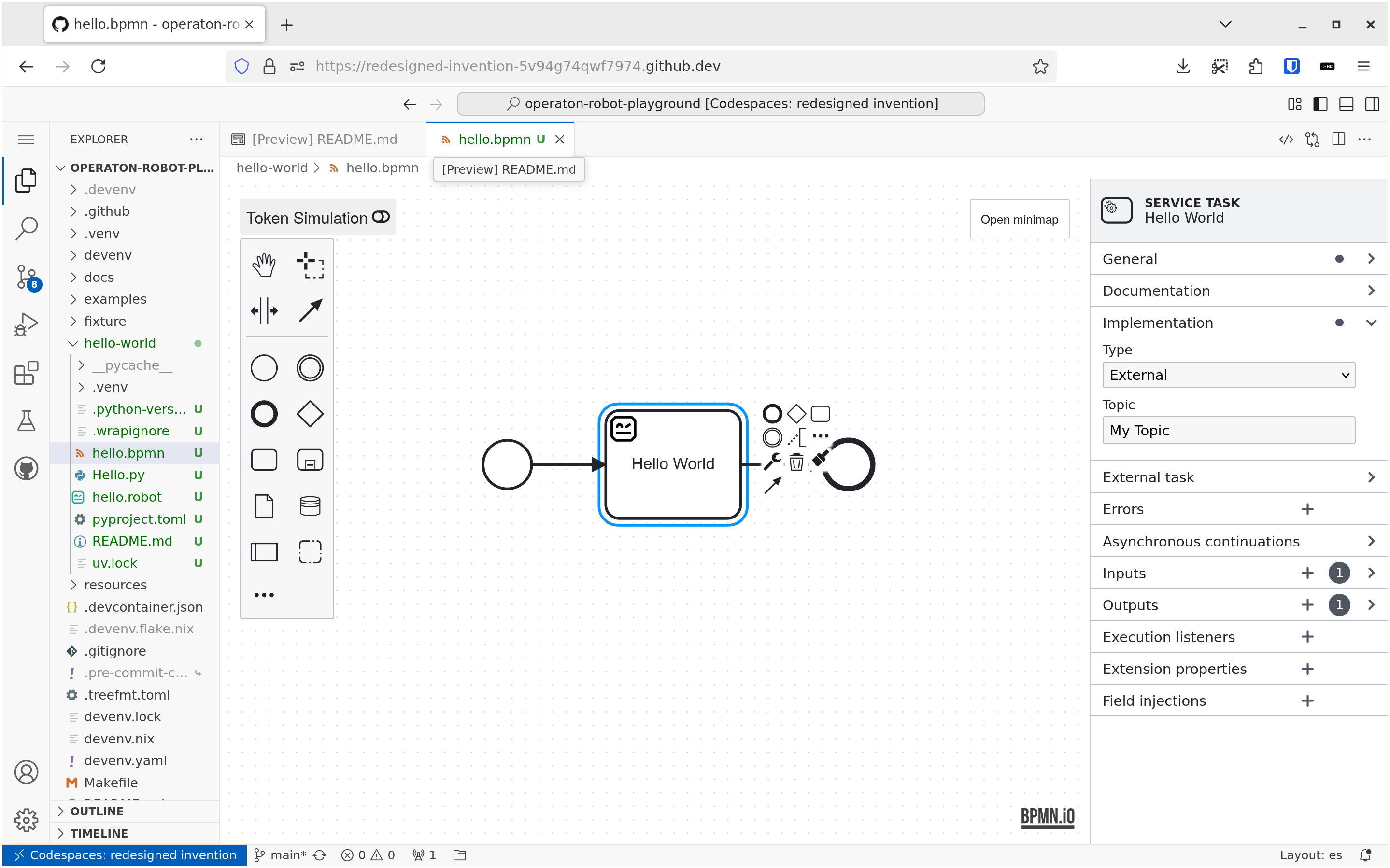

Any .bpmn, .dmn, or .form file opened in the editor will be rendered automatically in the visual modeler. The modelers are based on BPMN.io libraries, enhanced with Operaton/Camunda 7 element templates, transaction boundary overlays, token simulation, and real-time linting.

Creating diagrams directly from the modeler

You can create new BPMN diagrams directly from VS Code without needing terminal commands:

• Command Palette: Press Ctrl+Shift+P (or Cmd+Shift+P on macOS) and run BPMN Modeler: Create New Diagram.

• Explorer Context Menu: Right-click any folder or empty space in the file explorer and select BPMN Modeler: Create New Diagram.

• Enter your desired diagram filename (ending in .bpmn).

(Creating files via the terminal with pur operaton create <filename>.bpmn remains supported as well.)

Deploying diagrams with the Deployment button

The modeler includes a dedicated Deploy button in the editor toolbar. Clicking Deploy sends the active process diagram directly to the running Operaton engine’s REST API (http://localhost:8080/engine-rest). You can also configure a custom REST endpoint in settings (bpmnModeler.engineRestUrl).

RobotCode

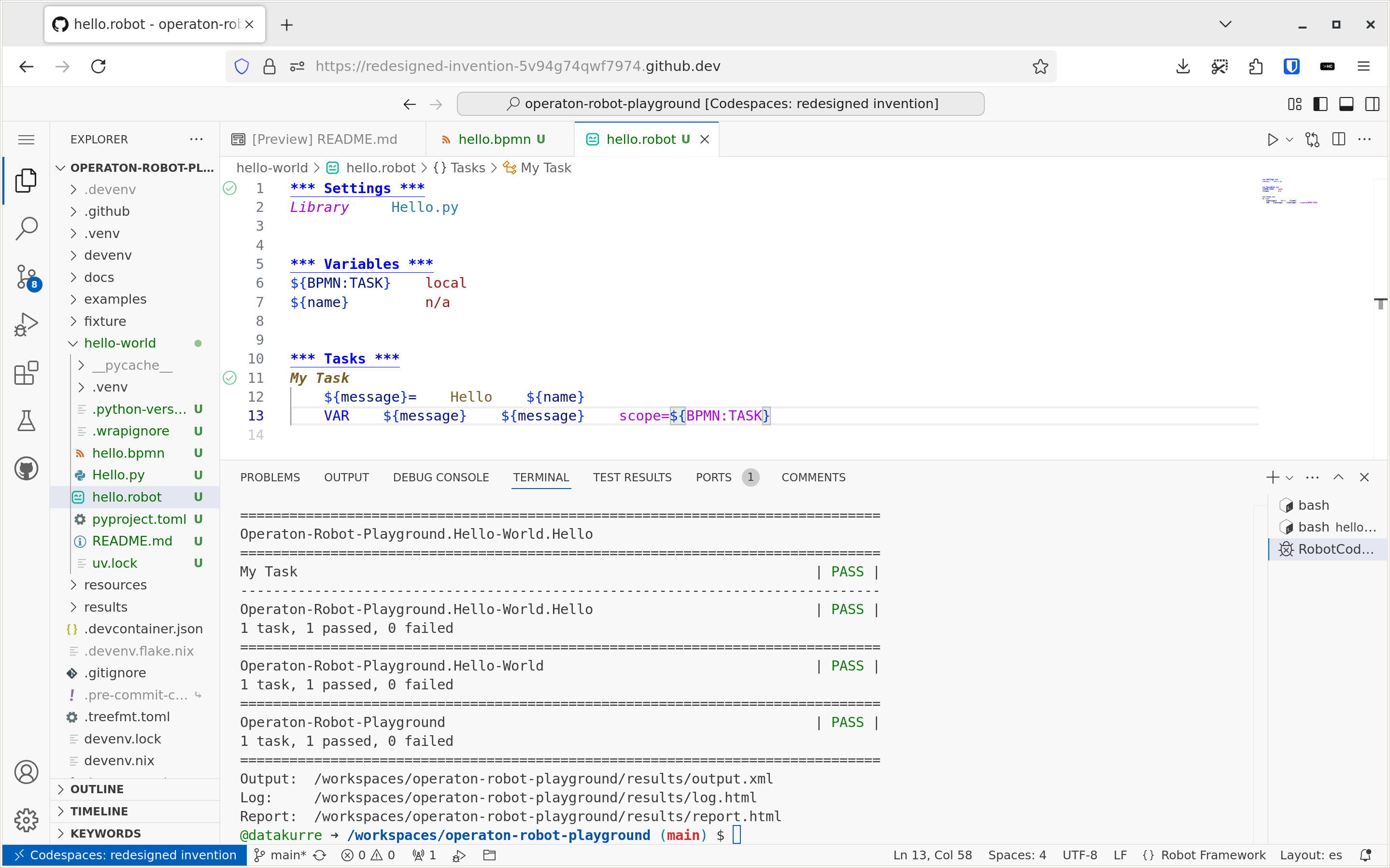

Another extension preinstalled in the playground is RobotCode. It’s the famous extension adding Robot Framework IntelliSense, linting, test execution and debugging, code formatting, refactoring, and many more features right into the editor.

RobotCode features are available in any .robot file opened in the editor.

RobotCode requires a Python virtualenv with the robotframework package preinstalled. The playground provides one right at .venv to support the autodiscovery in the editor. If the virtualenv is missing for some reason, try make shell in the terminal to recreate it.

Vault / secrets management

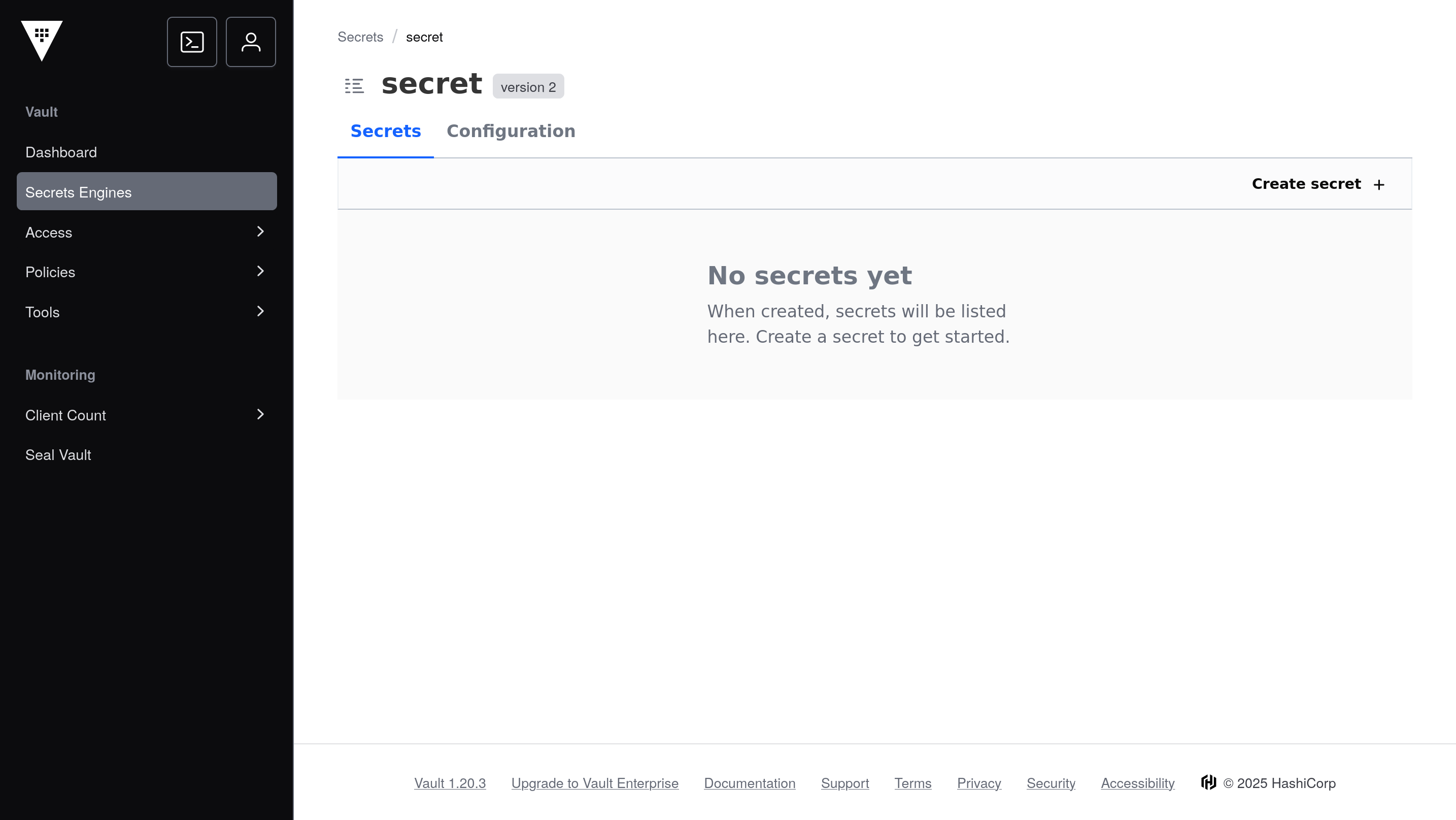

Sooner than later, running automation against external systems means you’ll need secrets (API keys, credentials, tokens). In this playground, secrets handling is primarily documented and implemented via pur(jo)’s secrets support.

To keep this introduction page self-contained:

• For local demos, pur(jo) can read secrets from a local JSON file (never commit it).

• For real environments, prefer a dedicated secret manager. pur(jo) supports a Vault provider (and expects VAULT_ADDR + VAULT_TOKEN).

The playground defines these automatically in its environment (check env|grep VAULT in terminal).

See the full details in the pur(jo) docs: Managing secrets.

uv

uv is an extremely fast Python package and project manager, written in Rust. It is a single tool that replaces most of the existing Python packaging and virtual environment tools.

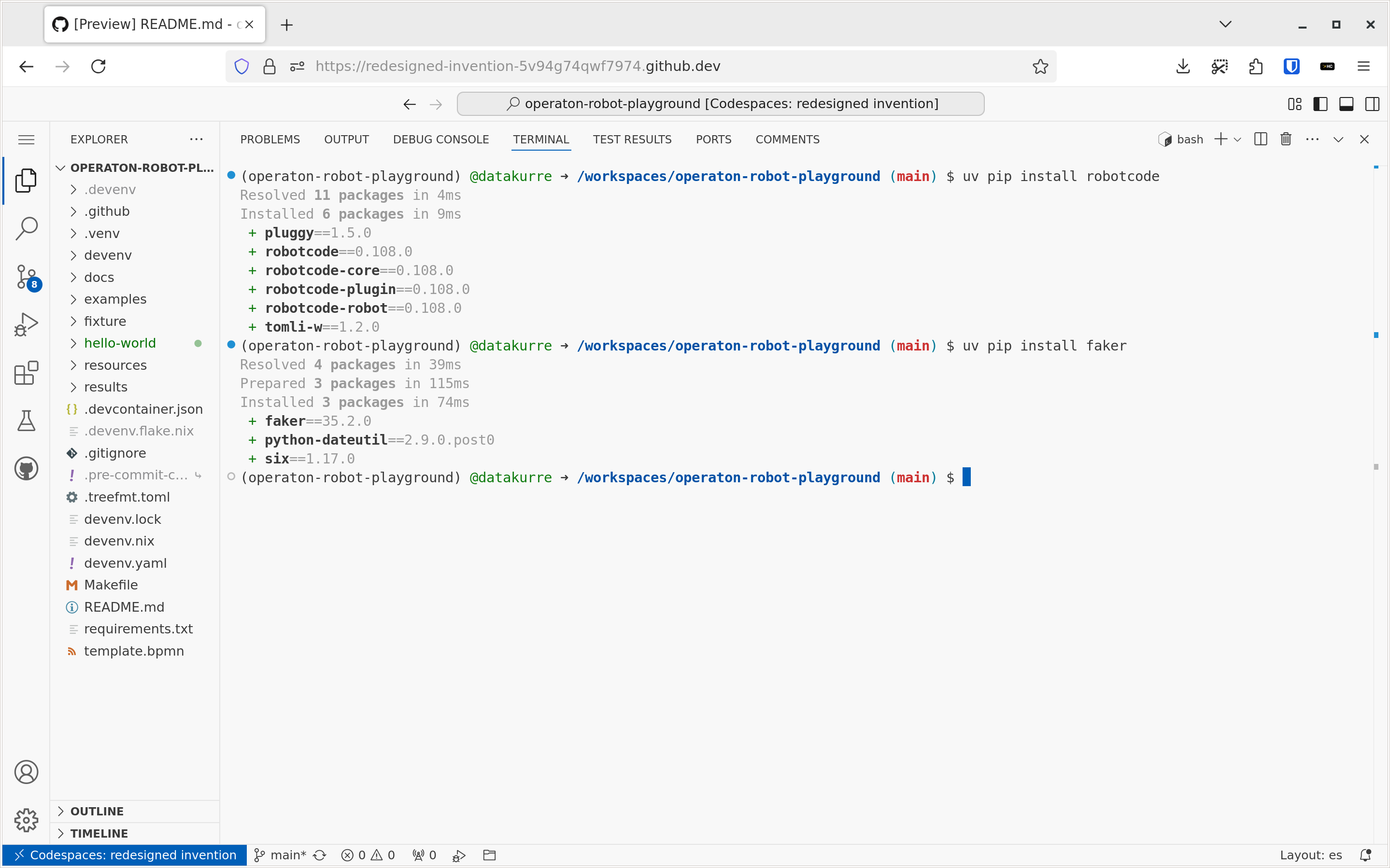

The default Python virtual environment in the playground is managed with uv. New packages can be installed into it using the command uv pip install. Later, uv is also used for managing custom Robot Framework test/task suite package dependencies with its uv add command, and for executing them with the pur(jo) tool.

If uv is not available in the terminal, it should become available with the command make shell in the terminal.

pur(jo)

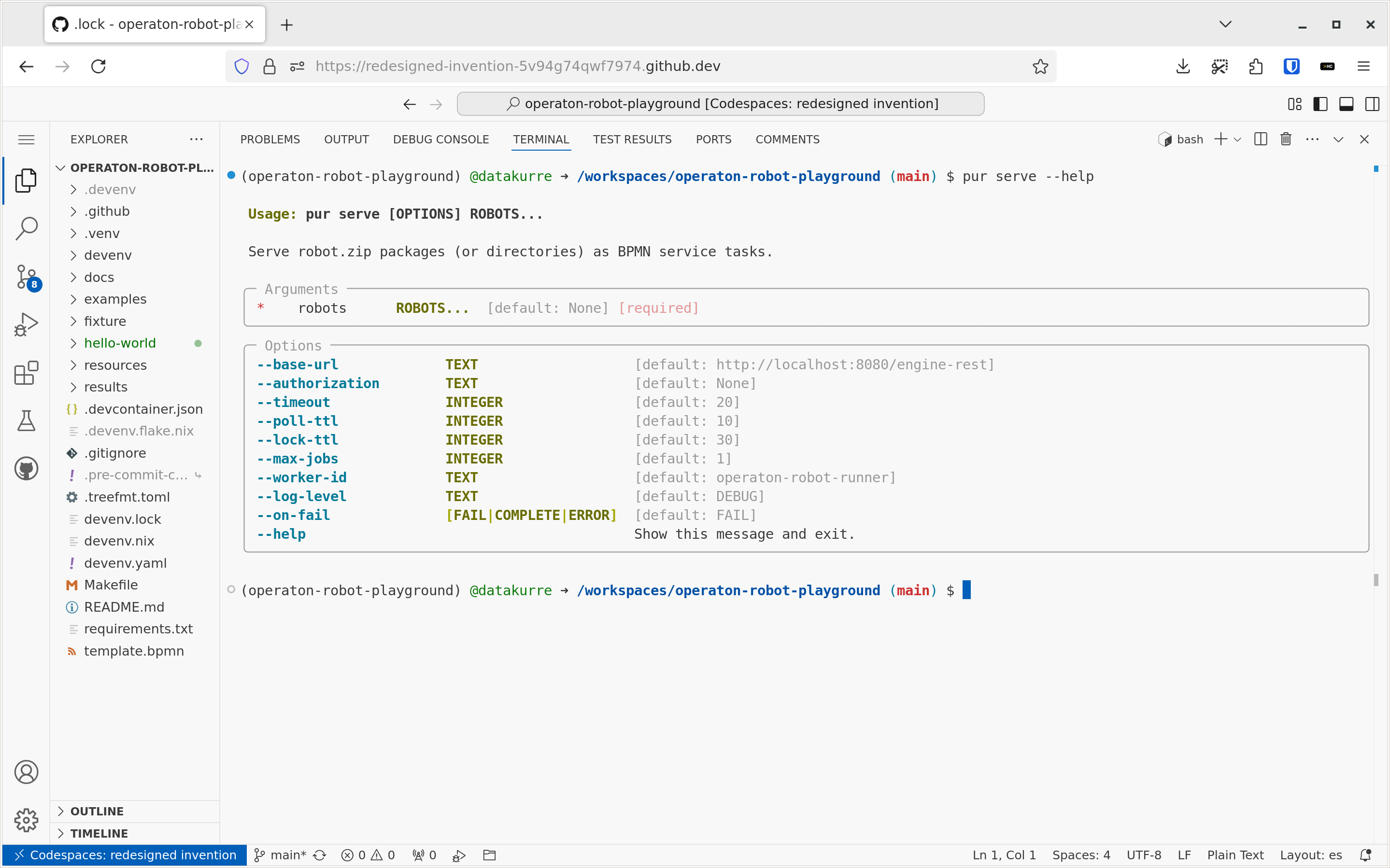

pur(jo) is a work-in-process tool for managing and executing Robot Framework test / task suite packages for BPMN-driven orchestration.

We’ll cover more about pur(jo) in the next sections of this documentation.
