Click to enlarge
End Event
Terminal node with standard 36x36 circular bounds.
Click to enlarge
Exclusive Gateway (XOR)
Diamond geometry (50x50) positioned on grid coordinates.
Click to enlarge
Task Activity
Standard 100x80 activity bounds with centered text area.
Click to enlarge
Start Event
Initial flow node with standard 36x36 dimensions and centered DI bounds.
Click to enlarge
5-Node Mixed Sequence Chain
Start -> Task -> Gateway -> Task -> End with zero bends across all sequence flows.
Click to enlarge
Start -> End Direct Flow
Collinear centers on track Y=140 with a straight 0-bend sequence flow.
Click to enlarge
Start -> Task -> End
Heterogeneous shapes with centers aligned horizontally and 0 bends.
Click to enlarge

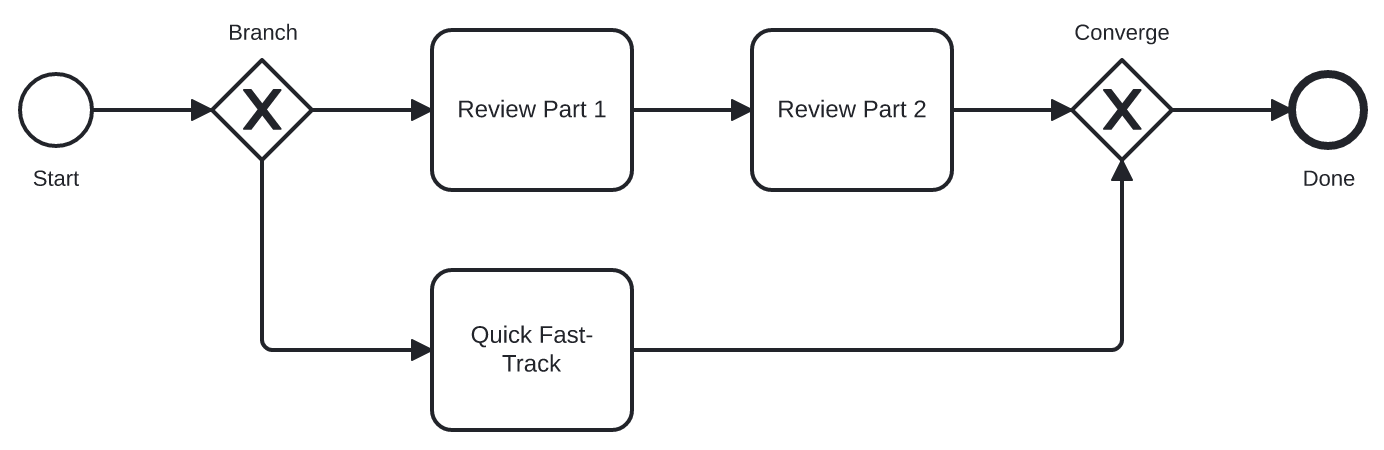

Asymmetric Branching Paths
Different branch lengths and topologies routed cleanly without edge-shape collisions.
Click to enlarge

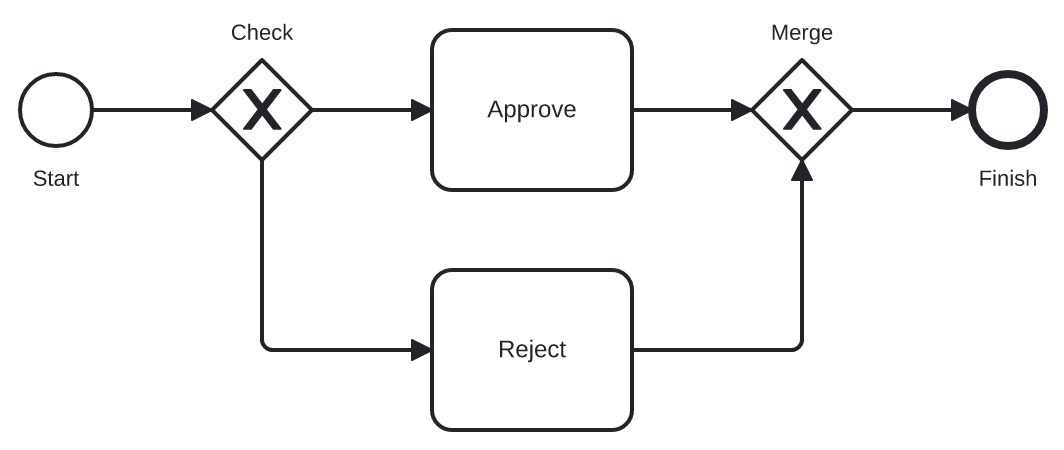

Symmetrical 2-Way Split & Join
Balanced track assignment (-0.5 and +0.5) with symmetrical S-bends.
Click to enlarge

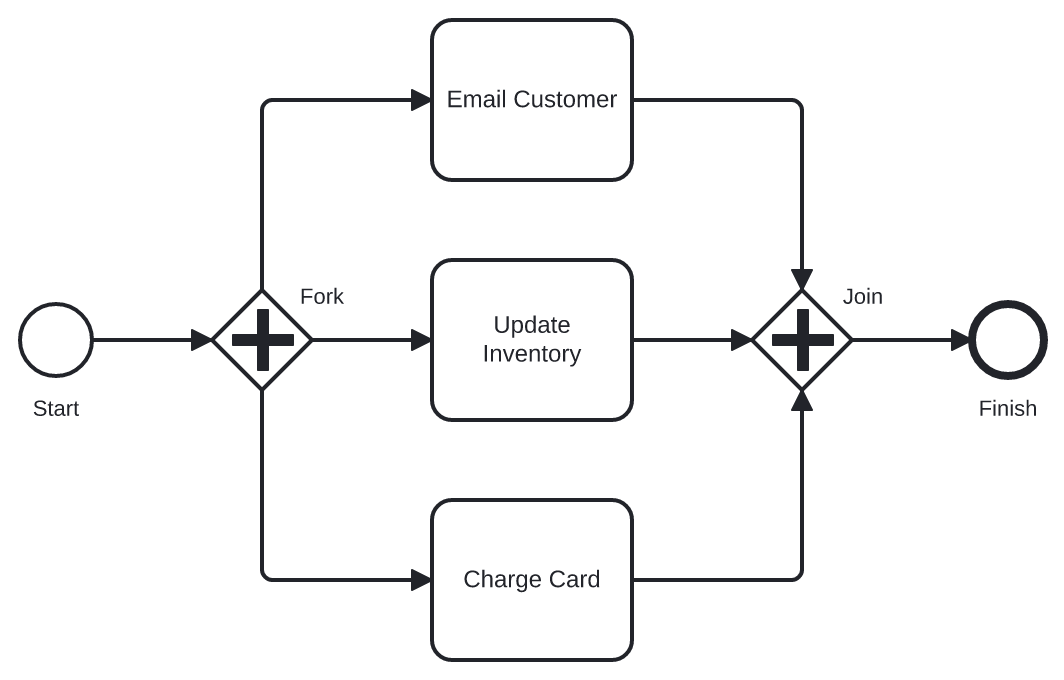

3-Way Split with Collinear Center
Center branch remains strictly collinear to gateways while outer branches bend symmetrically.
Click to enlarge

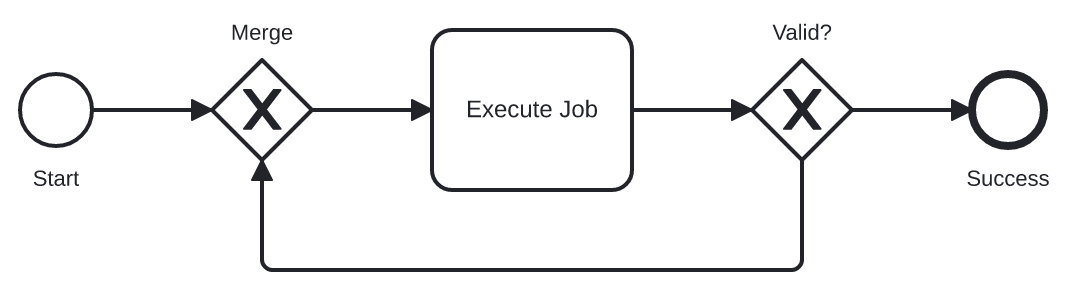

Gateway Feedback Loop
Upstream cycle from evaluating gateway back to preceding task via clearance channel.
Click to enlarge

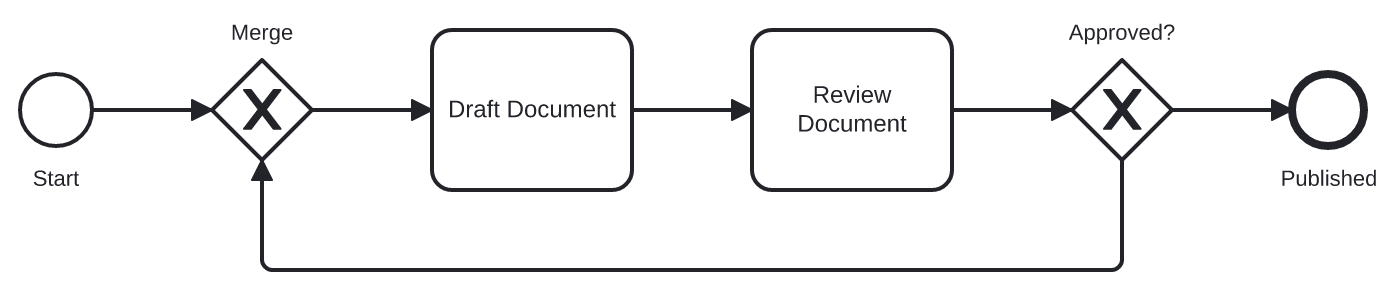

Task Retry Cycle
Self-loop / feedback cycle routed through bottom perimeter clearance channel.
Click to enlarge

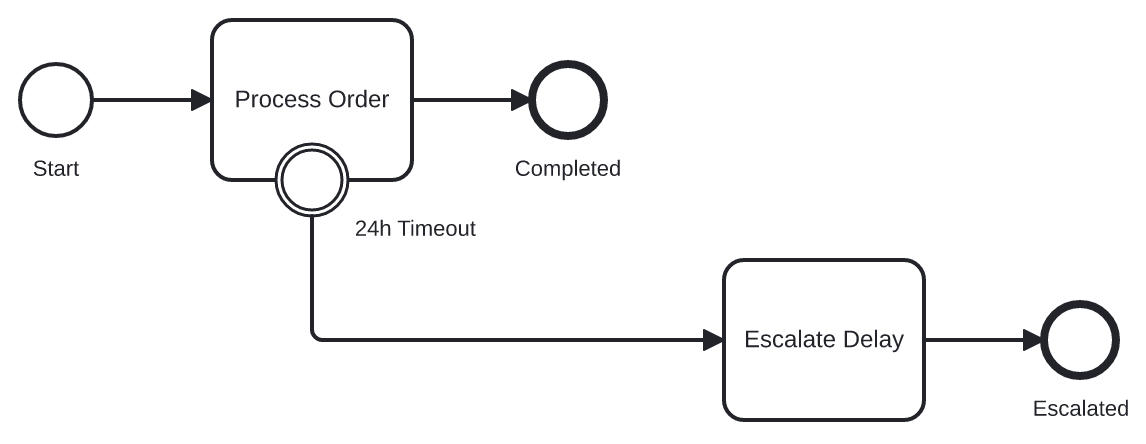

Single Boundary Event
Boundary event docked to host task bottom perimeter with exception flow.
Click to enlarge

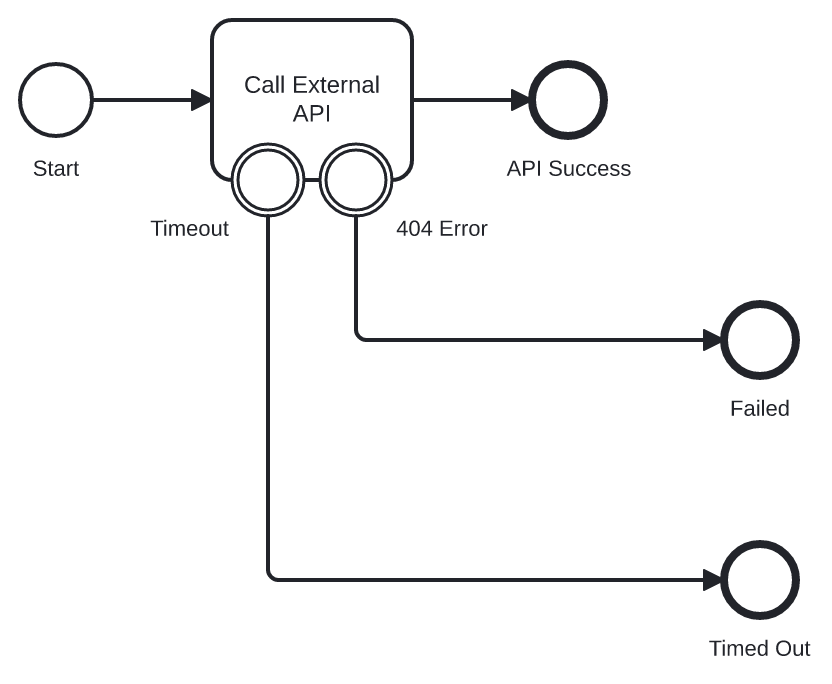

Multiple Boundary Events on Task
Non-overlapping horizontal perimeter distribution with target-depth sorting.
Click to enlarge

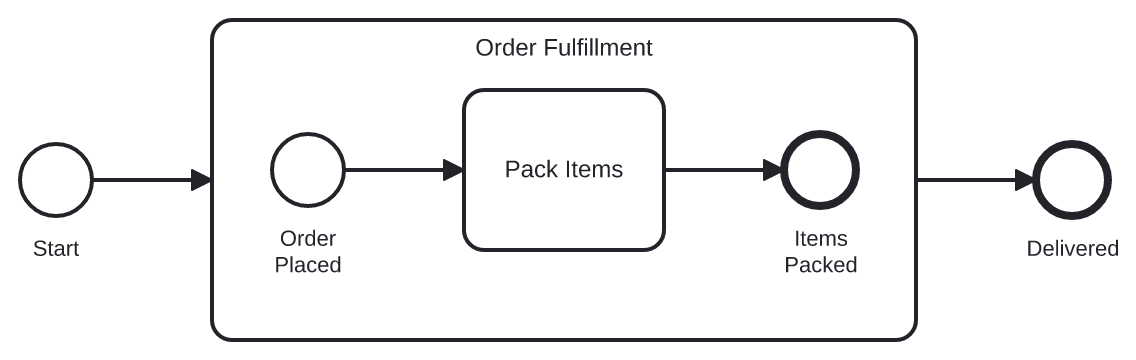

Expanded Sub-process
Dynamic container bounding box computed bottom-up from internal flow with 30px padding.
Click to enlarge

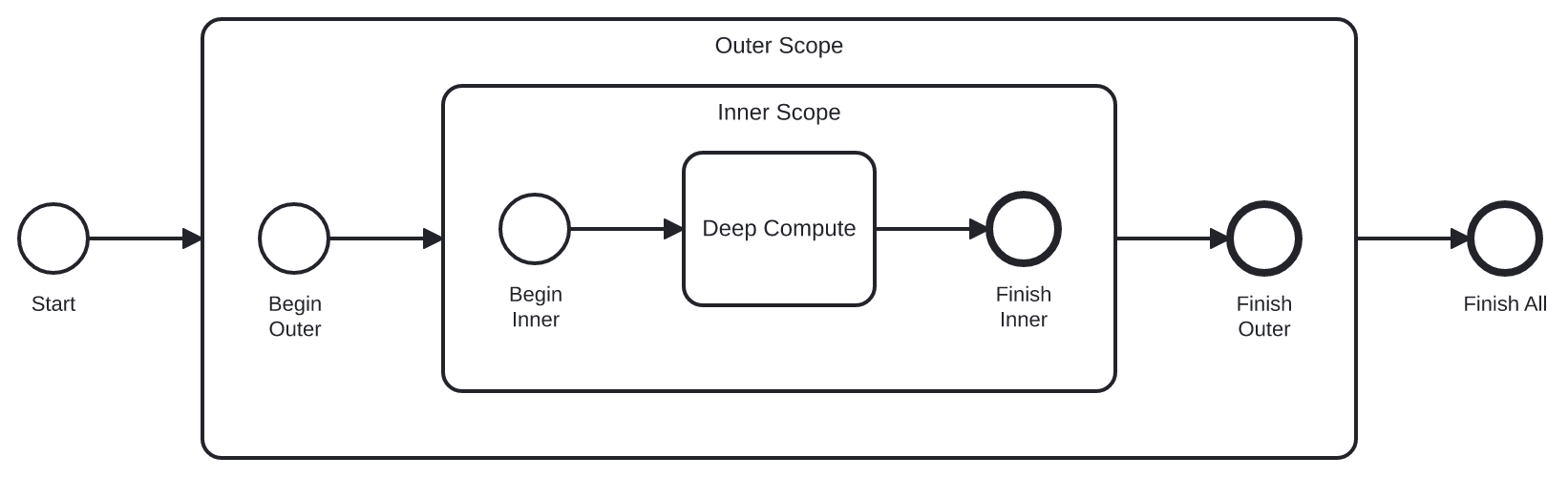

Recursively Nested Sub-processes
Multilevel hierarchy with child coordinate translation relative to nested parents.
Click to enlarge

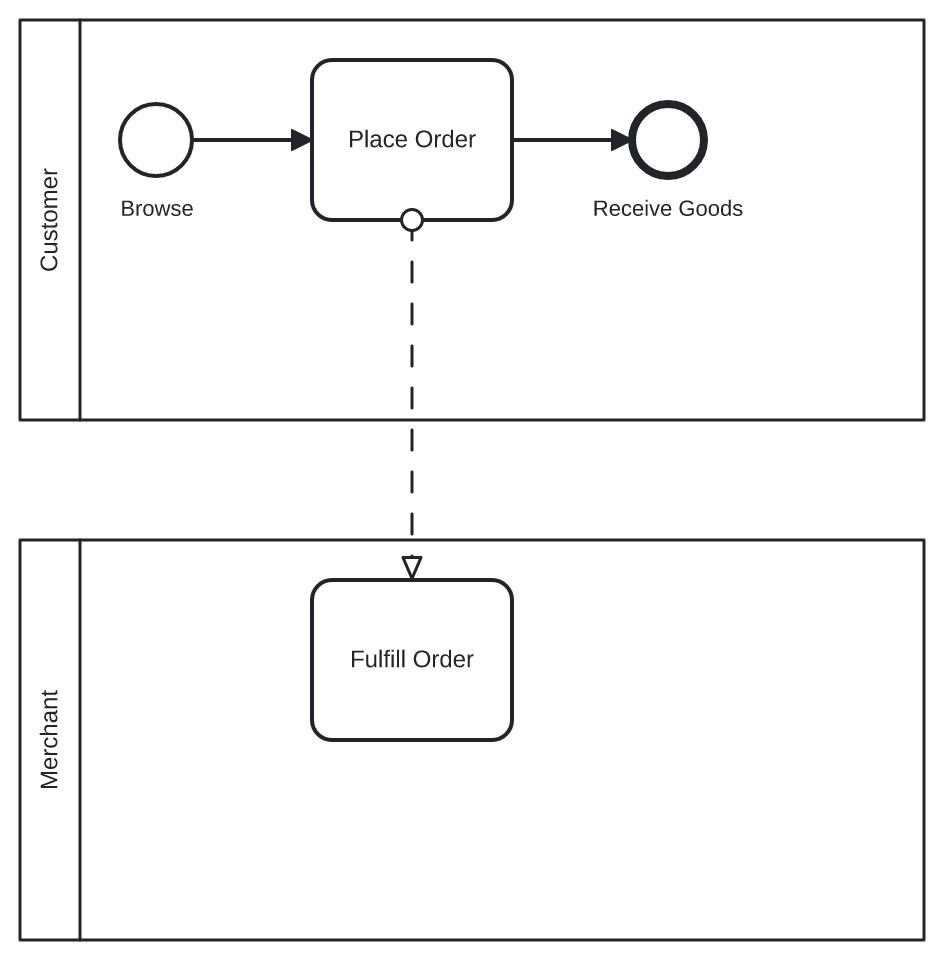

Multi-Pool Collaboration
Black-box and white-box pools with orthogonal inter-pool message flows.
Click to enlarge

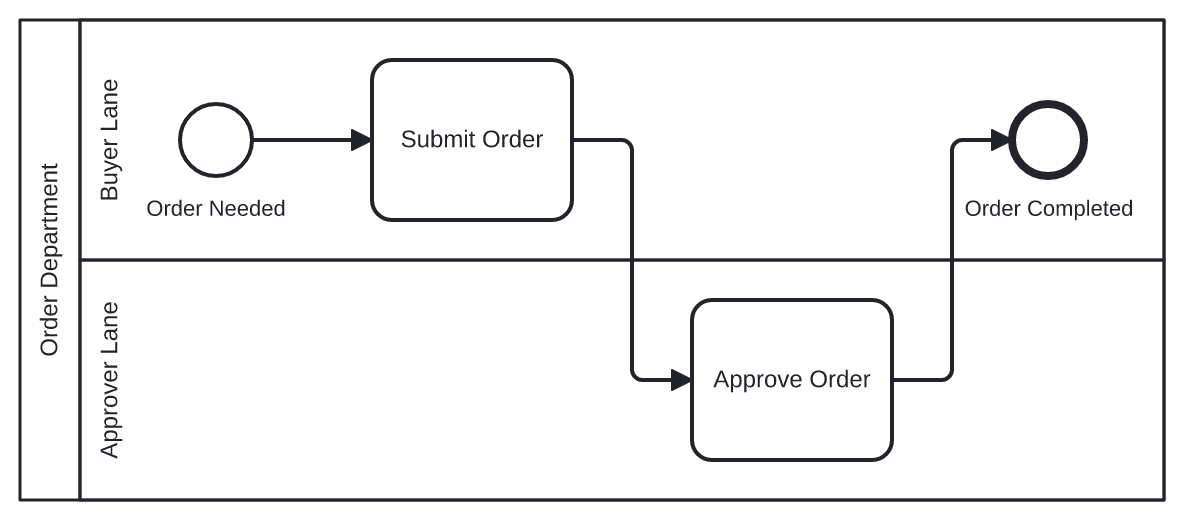

2-Lane Pool with Cross-Lane Flows
Pre-routing lane track assignment ensuring shapes stay within lane bounds with orthogonal cross-lane flows.
Click to enlarge
Bitwise Deterministic Layout
Idempotent passes produce bitwise-identical XML outputs and SHA256 image hashes.
Click to enlarge

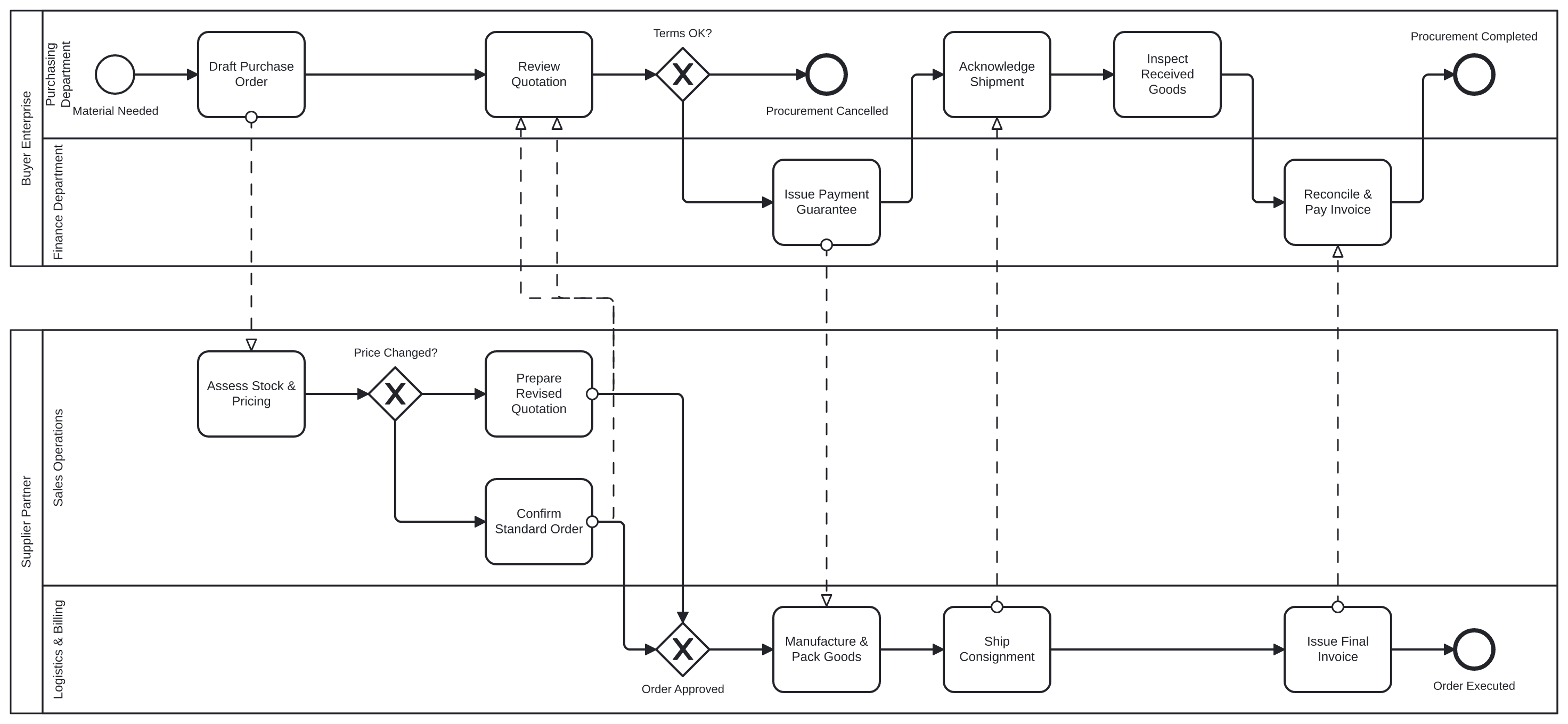

B2B Supply Chain Collaboration
Multi-pool B2B choreography with 4 swimlanes across 2 enterprises, coordinated by 6 bidirectional inter-pool message flows.
Click to enlarge

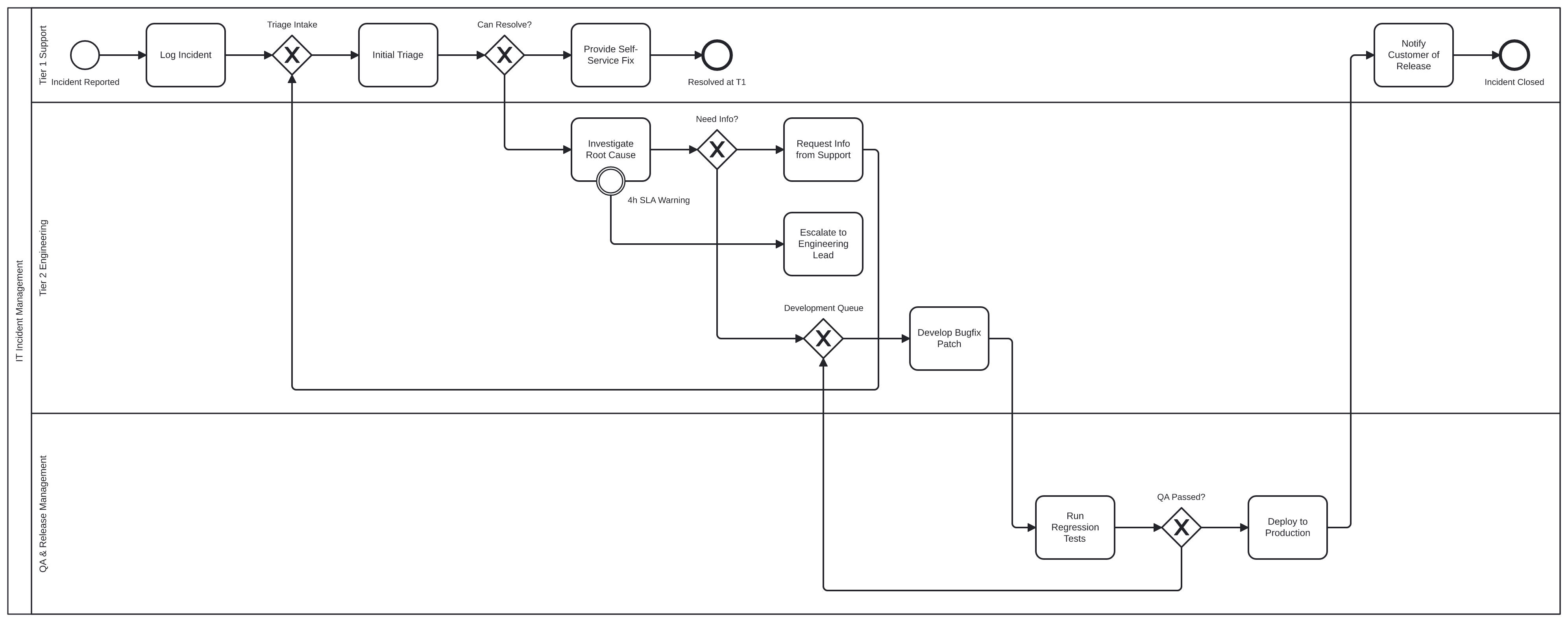

3-Lane Incident Management
Multi-lane cross-functional pool with forward escalation, backward clarification loops, boundary timer escalation, and multi-lane skip flows.
Click to enlarge

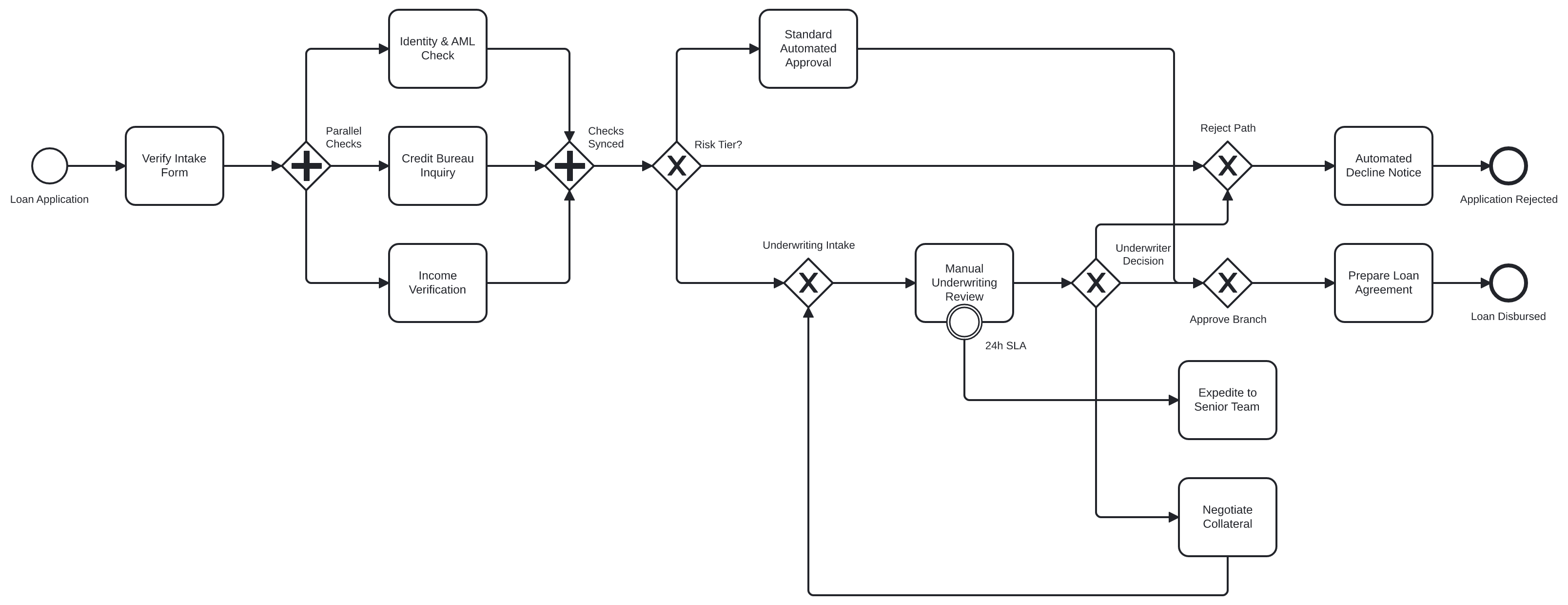

Multi-Gateway Loan Decision Matrix
Dense 6-gateway decision matrix with 3-tier risk classification, parallel KYC checks, manual underwriting review with SLA timer, and collateral negotiation loops.
Click to enlarge

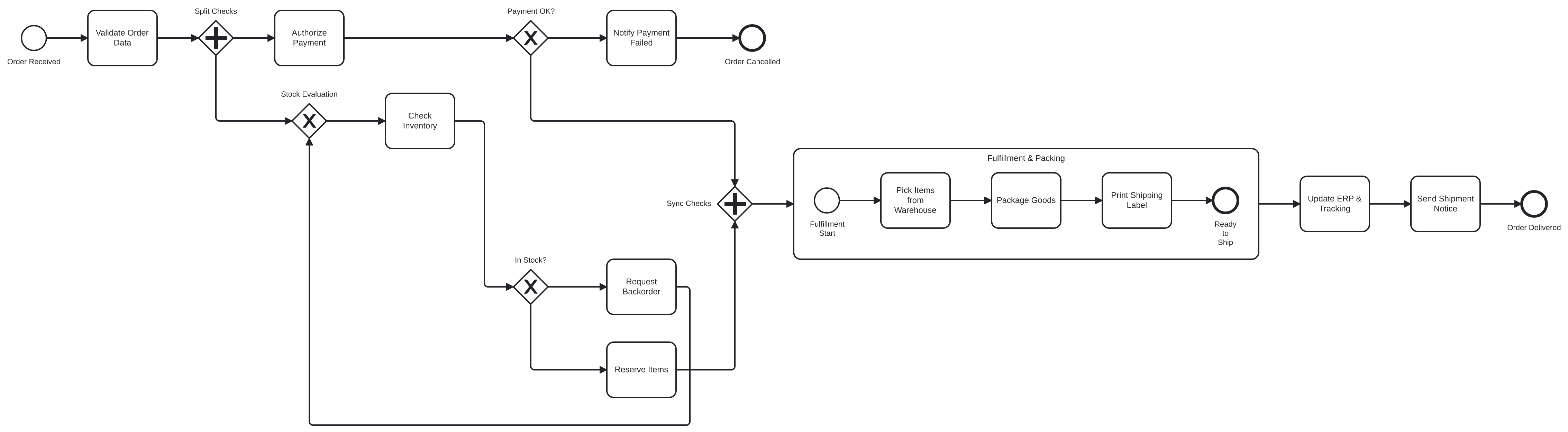

E-Commerce Order Fulfillment
End-to-end order processing combining parallel splits, feedback retry cycles, an embedded expanded subprocess, and multiple cancellation/fulfillment terminal nodes.
Click to enlarge

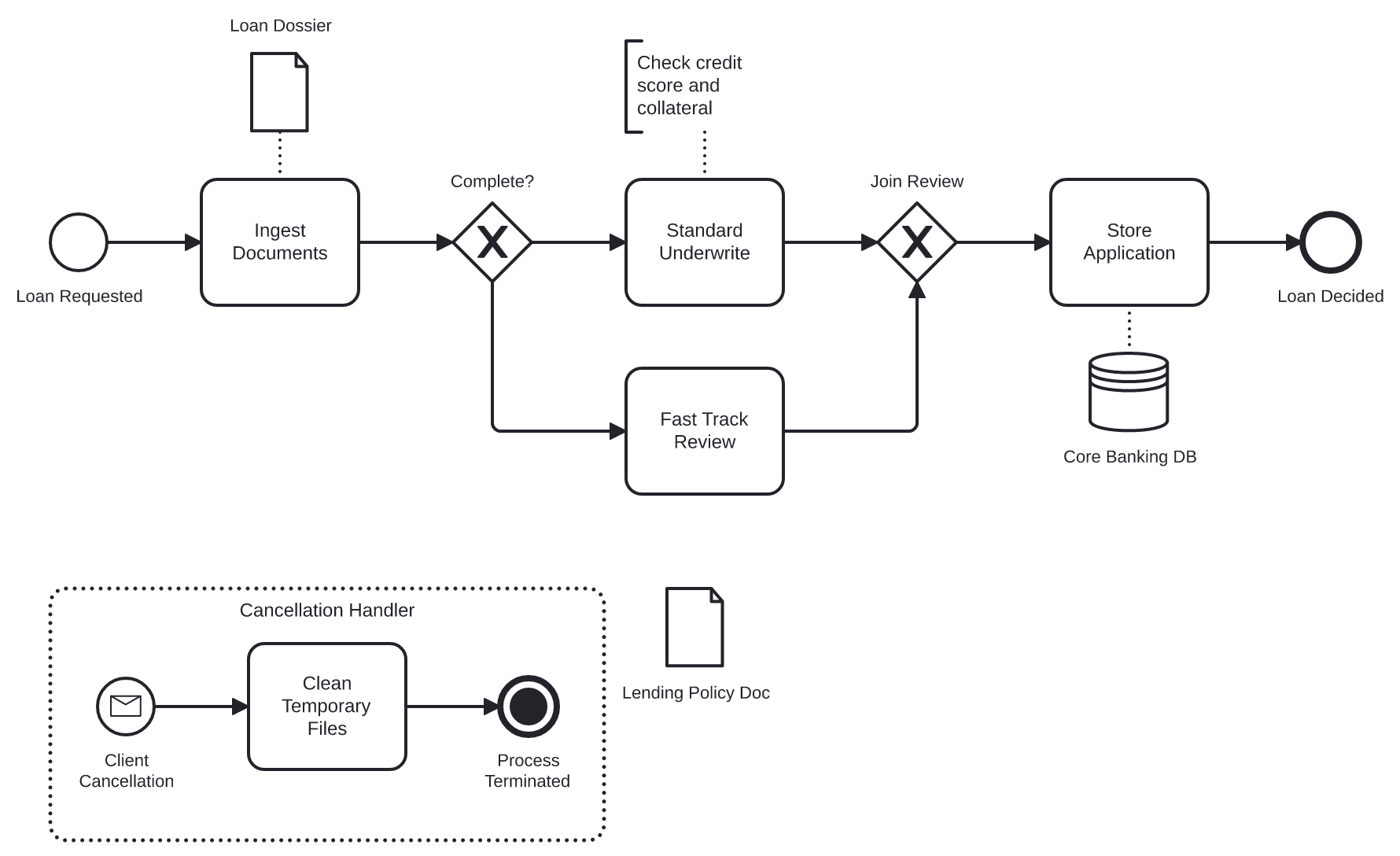

10-event-subprocesses-and-artifacts
Rendered diagram snapshot.
